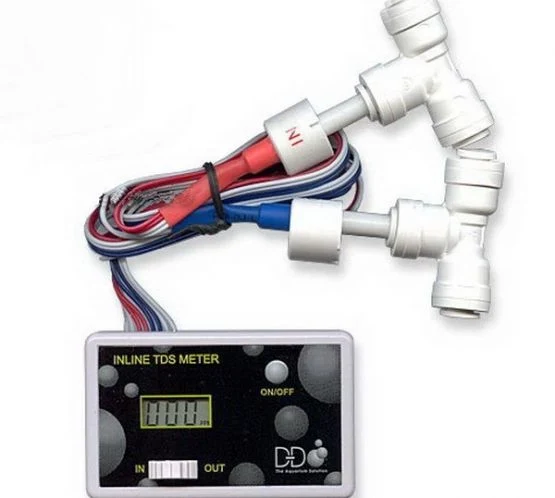

Inline TDS meter
Inline TDS meter
A D-D TDS Meter measures the amount of Total Dissolved Solids (TDS) in a solution.
This measurement is used to determine the purity of the water produced by your RO unit and will give an indication of when your DI resin or membrane life is coming to an end. The inline version measures the TDS of the feed water before the RO Unit and the TDS of the pure water from the unit.
Since dissolved ionized solids like salts and minerals contribute to the conductivity of a solution, a TDS meter measures the conductivity of the solution which is then converted to a TDS reading.
TDS is directly related to quality of water i.e., the lower a TDS figure, the more pure the water. As an example, reverse osmosis purified water will have a TDS between 0 and 10, whereas tap water will vary between 20 and 300.
Features
Displays TDS levels of the feed water and product water with in & out electrode probes.
Highly efficient and accurate due to its advanced microprocessor technology.
Auto-Off function conserves battery power. The unit shuts off automatically after 10 minutes of non-use.
Dual Range 0-9990 ppm (From 0 - 999 ppm the resolution is 1 ppm. From 1000 to 9990 ppm, the resolution is 10 ppm, indicated by a blinking 'x10' image.)
Meters are calibrated with a 342 ppm NaCl solution. Meters can be recalibrated with a mini-screwdriver.
Comes equipped with John Guest Quick-Connect T-fittings.
Installs quickly and easily.
Accuracy: ±2%
Cable Length: 24.5" (including sensor)
Power source: 2 x 1.5V button cell batteries (included)
Battery life: approx. 1000 hours of continuous use
Size: 7.6 x 2 x 4.7 cm (3 x .8 x 1.9 in.)
Weight: 79.4 g (2.8 oz.)
Inline TDS meter
Inline TDS meter
A D-D TDS Meter measures the amount of Total Dissolved Solids (TDS) in a solution.
This measurement is used to determine the purity of the water produced by your RO unit and will give an indication of when your DI resin or membrane life is coming to an end. The inline version measures the TDS of the feed water before the RO Unit and the TDS of the pure water from the unit.
Since dissolved ionized solids like salts and minerals contribute to the conductivity of a solution, a TDS meter measures the conductivity of the solution which is then converted to a TDS reading.
TDS is directly related to quality of water i.e., the lower a TDS figure, the more pure the water. As an example, reverse osmosis purified water will have a TDS between 0 and 10, whereas tap water will vary between 20 and 300.
Features
Displays TDS levels of the feed water and product water with in & out electrode probes.
Highly efficient and accurate due to its advanced microprocessor technology.
Auto-Off function conserves battery power. The unit shuts off automatically after 10 minutes of non-use.
Dual Range 0-9990 ppm (From 0 - 999 ppm the resolution is 1 ppm. From 1000 to 9990 ppm, the resolution is 10 ppm, indicated by a blinking 'x10' image.)
Meters are calibrated with a 342 ppm NaCl solution. Meters can be recalibrated with a mini-screwdriver.
Comes equipped with John Guest Quick-Connect T-fittings.
Installs quickly and easily.
Accuracy: ±2%
Cable Length: 24.5" (including sensor)
Power source: 2 x 1.5V button cell batteries (included)
Battery life: approx. 1000 hours of continuous use
Size: 7.6 x 2 x 4.7 cm (3 x .8 x 1.9 in.)
Weight: 79.4 g (2.8 oz.)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Inline TDS meter
A D-D TDS Meter measures the amount of Total Dissolved Solids (TDS) in a solution.
This measurement is used to determine the purity of the water produced by your RO unit and will give an indication of when your DI resin or membrane life is coming to an end. The inline version measures the TDS of the feed water before the RO Unit and the TDS of the pure water from the unit.
Since dissolved ionized solids like salts and minerals contribute to the conductivity of a solution, a TDS meter measures the conductivity of the solution which is then converted to a TDS reading.
TDS is directly related to quality of water i.e., the lower a TDS figure, the more pure the water. As an example, reverse osmosis purified water will have a TDS between 0 and 10, whereas tap water will vary between 20 and 300.
Features
Displays TDS levels of the feed water and product water with in & out electrode probes.
Highly efficient and accurate due to its advanced microprocessor technology.
Auto-Off function conserves battery power. The unit shuts off automatically after 10 minutes of non-use.
Dual Range 0-9990 ppm (From 0 - 999 ppm the resolution is 1 ppm. From 1000 to 9990 ppm, the resolution is 10 ppm, indicated by a blinking 'x10' image.)
Meters are calibrated with a 342 ppm NaCl solution. Meters can be recalibrated with a mini-screwdriver.
Comes equipped with John Guest Quick-Connect T-fittings.
Installs quickly and easily.
Accuracy: ±2%
Cable Length: 24.5" (including sensor)
Power source: 2 x 1.5V button cell batteries (included)
Battery life: approx. 1000 hours of continuous use
Size: 7.6 x 2 x 4.7 cm (3 x .8 x 1.9 in.)
Weight: 79.4 g (2.8 oz.)
